Wingert Bypass Feeders
are designed to provide you with a rugged
and dependable means of introducing treatment
chemicals into hot and chilled water, or
other liquid streams. Simplicity of design
and ease of operation is inherent in every
Wingert Bypass Feeder. With three styles
to choose from, the J.L. Wingert Company
offers the widest variety of feeders in
the industry.
200 PSI (13.6 Bar) at 200° F (90°
C)
3 ½" closure
Flat or Dome Bottom available in 2,
5, 12 and 18 gallon capacities
High-Pressure (300 PSI) available
in 2, 5 & 12 gallon capacities
Select models are available with ASME
code construction
Complete line of accessories
Stainless steel construction and epoxy
coating available on selected models

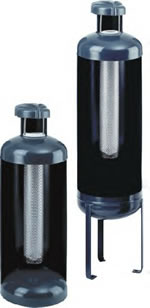

Wingert Filter Feeders
eliminate the need for a separate bypass
feeder and filter - all in one space saving,
valve limiting design. As rugged and dependable
as our complete line of bypass feeders,
the filter feeder offers ease of installation
with precise filtering capabilities down
to 25 microns. Wingert Filter Feeders are
available in both flat and dome bottom models.
Up to 200 PSI (13.6 Bar) at 200°
F (90° C)
2, 5 & 12 gallon capacities
Flat Bottom in Regular or High Capacity
Dome Bottom in Regular or High Capacity
Standard 25 micron filter included,
other ratings available upon request

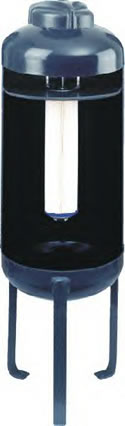

Pleated Filter Feeders
combine chemical addition and filtering
in one piece of equipment. They prove to
be a convenient way to introduce chemicals
into hot or cold water closed circulating
systems. The Wingert Pleated Filter Feeder
has a larger filtration volume/capacity
than any other filter feeder on the market
today. Our unique handle top filter holder
design keeps hands safely away from potentially
harmful chemicals, while our full bottom
drain easily voids chemical residual.
Filtration can be achieved at the
same time as chemical addition
Comes with a standard 20 micron filter,
other filters available
Most standard 9-10 inch cartridge
filters can be used
Easy cleaning filter design
Pleated design gives larger/increased
filter surface area
1/4 turn positive seal closure and
quick release cap
Maximum pressure 200 PSI (13.6 Bar)
at 200° F (90° C)
2 & 5 gallon capacities
Carbon steel construction
Perfect for shot/slug feeding chemicals
into closed loop systems, cooling towers
or boilers
This new addition to our extensive
feeder line adds chemical resistance without
topical coatings that scratch. These fiberglass
feeders have CPVC closures and come in flat
and dome bottom models that are rated for
120° F at 150 psi. Complete the installation
by adding valve packages & air release
valves.
We sell a complete line of (LMI)
Liquid Metronics products. We carry a large inventory for
almost any need and we offer some of the best prices in
the industry. Our fast shipping and service after the sale
set us apart from the competition. Please visit our online
store or call 817-467-4574 for more info.
We sell a complete line of Harmsco
Filtration solutions for both industrial and residential
applications. We also sell replacement filters for all Harmsco
filters. The patented upflow filtration process has superior
performance over traditional methods. Some of the products
include the Waterbetter series and Hurricane series. For
more information please call 817-467-4574 or fax your information
request to 817-467-7023
